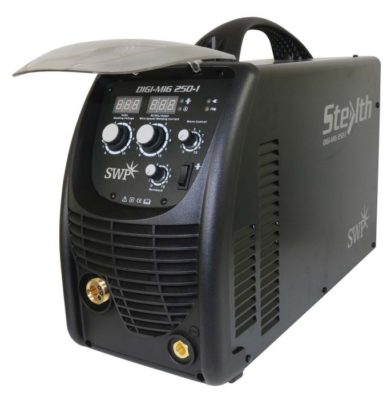

Digi-Mig 250-1 Phase - Package Inc'S Torch & Reg

SWP Stealth Phase Digi-Mig 250-1

• Waveform control for added arc stability – even at low currents
• Equipped with temperature, voltage and current sensors for high protection
• Capable of loading up to 15kg spool
• 2 rolls wire feeder fitted as standard – 4 rolls feeder available on request
• Burnback control
• M25-3 torch and regulator included
• 5 years warranty on SWP Stealth Phase Digi-Mig 250-1

Specifications

Input power voltage (v)       1-230

Frequency (hz)        50/60

maximum (KVA)     11.5

Effective input current (A)    38

Welding voltage range    47

Maximum no-load voltage (v)    60% @ 250

Duty cycle (A) (40 degrees 10min)     100% @ 200

Protection class       lp23

Efficiency        85

Insulation class    H

Cooling      Air

Overall dimensions (mm)    618 x 240 x 445

Weight (kg)         23

Accessories included          3m Argon hose, 3m Earth return lead
