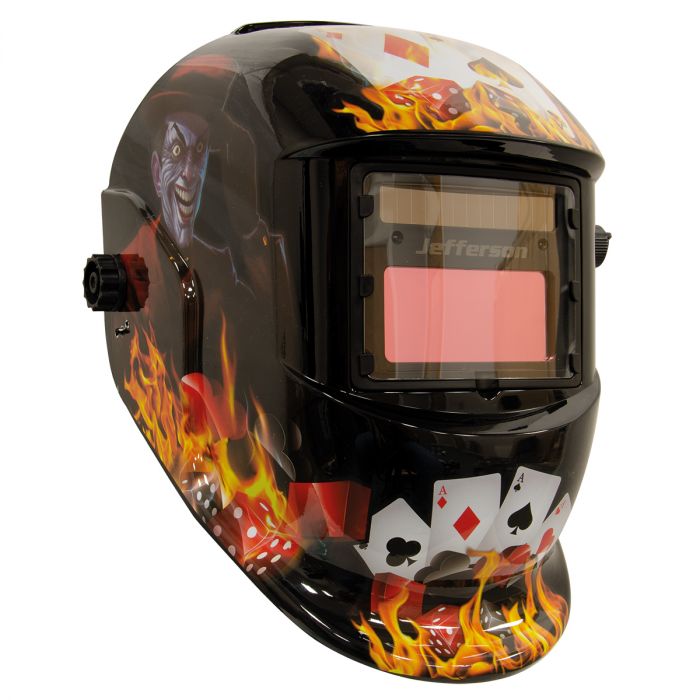

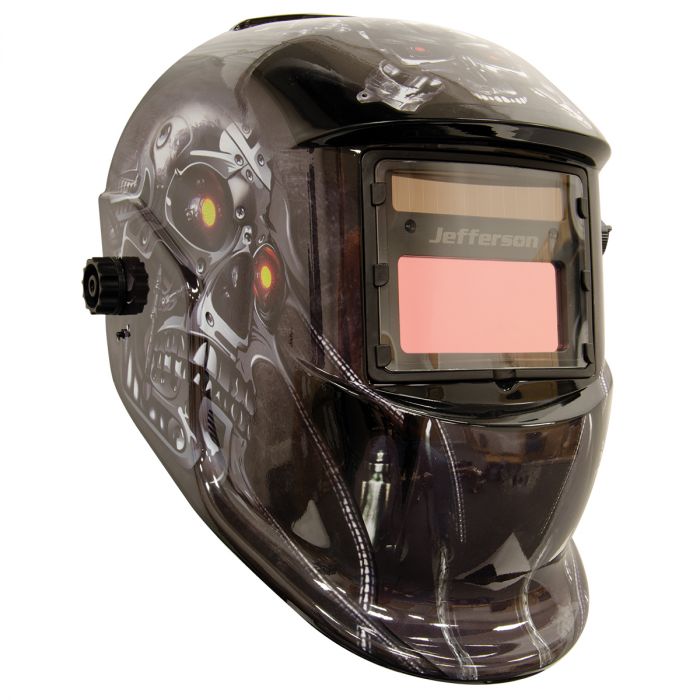

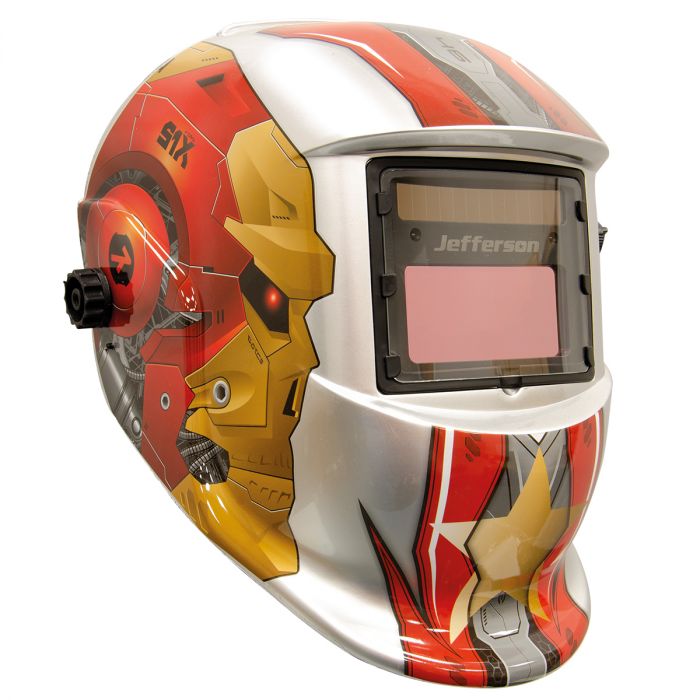

Automatic Welding & Grinding Helmet - Type 1

Slim, lightweight & well-balanced auto-darkening welding helmet.

• Fully adjustable headgear for comfort and fatigue reduction
• Powered by 1x CR2045 lithium battery & solar cells
• Features auto-off circuitry at 15-20 minutes and low-battery indicator
• Two independent ARC Sensors for increased safety and protection
• Variable shade 9-13 with sensitivity and delay controls
• Suitable for MMA, MIG, TIG, PAC, PAW, CAC-A processes

• SKU                                       JEFWELHT6G-01
• Viewing Area                         92 x 42mm
• Optical Class                          1/2/1/2
• Light State                             DIN 4
• UV/IR Protection                   DIN 16
• Operating Temperature        Range 5°C to 50°C
• Cartridge Size                       110 x 90 x 9mm
• Switching Time                     Light to Dark 1/25000s
• Switching Time                     Dark to Light  High: 0.25~0.3s, Medium: 0.35~0.6s , Low: 0.65~0.85s
• Power On/Off                       Fully automatic
• Sensitivity Control                 Low / Medium / High
• Low Amperage                     TIG20A (DC, AC)
• Gross Weight                        0.77 kgs
